Product information
Mechanical Products
LINE・Solar LINE
Differences in HANABI flashing patterns

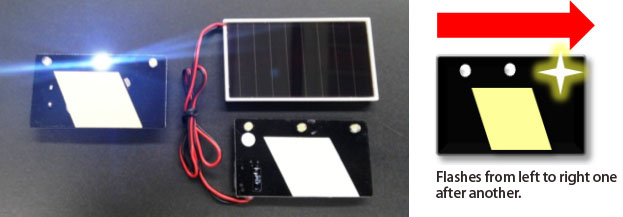

LEDs flash from left to right as if the light is flowing.
LINE Solar LINE


LINE
Solar LINE
Power supply
Battery
Solar panel
LED color
Red, white, blue
White
Size
50mm×28mm
Board 　50mm×28mm
Solar panel
58mm×33mm
Cord length 250mm
■Click here for video
top
HANABI
HANABI need only be attached to an ordinary POP! It will be transformed into a unique and conspicuous POP!
HANABI

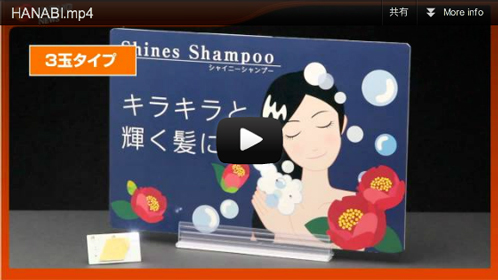

Click here for videos
HANABI

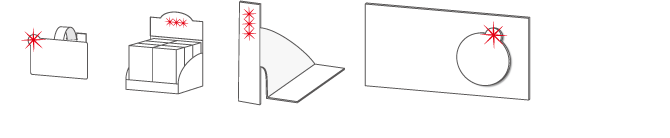

Usage examples

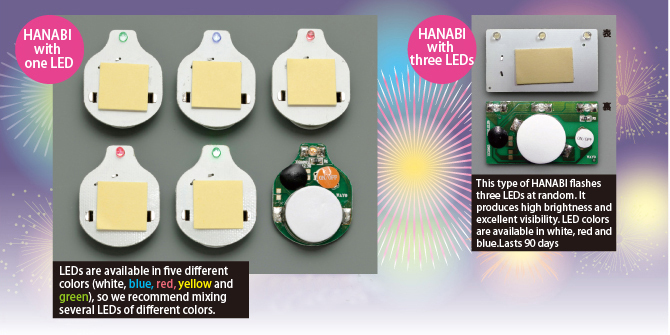

HANABI
  HANABI with one LED HANABI with three LEDs
Size Lamp type (3 mm diameter) Lamp type (3 mm diameter)
Lamp type 29mm x 38mm 50mm x 38mm
LED color Red, yellow, blue, white, green White, blue, red
Flashing pattern Four consecutive flashes Three LEDs flash at random
Board material Glass fiber Glass fiber
Power switch Attached Attached
Double-sided cushion tape Above the battery holder (20 mm diameter), on the LED side
(25 mm diameter)		 Above the battery holder (20 mm diameter), on the LED side
(25 x 15 mm)
Battery CR2032 x 1pc
(19.9 mm diameter, 3 mm thick)		 CR2032 x 1pc
(19.9 mm diameter, 3 mm thick).
このページのトップに戻る
Pause

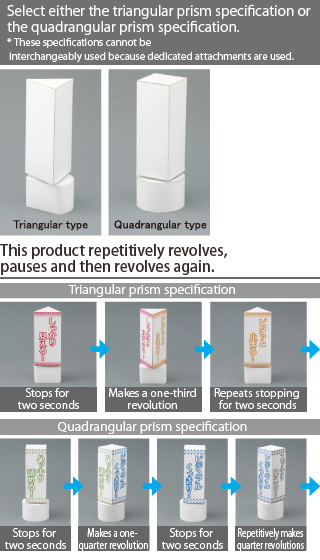

Revolving increases the attention-getting effect, while pausing increases the customer notification recognition effect

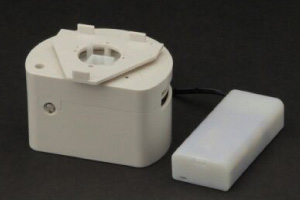

  • External dimensions of the motor mechanism :
    Height : 50 mm
    (excluding the base mounting protrusions)
    Width : 80 mm
    Depth : 63 mm
  • Weight of the motor mechanism 112 g
    (excluding external batteries)
  • Materials: ABS resin, POM resin
  • Operating temperature range: Between -10ºC and +40ºC
  • Operating humidity range: Between 30% and 90%
    (no condensation)
  • Power supply: AA battery x 2 or AC adapter (3 V)
  • Behavioral specification: Operating for approximately two seconds and stopping for approximately five seconds
  • Battery life:
    Approximately 31 days, assuming that the motor operates every five seconds, an optical sensor for detecting daytime and nighttime is incorporated, two AA batteries are used, and the product operates 12 hours a day

Click here for videos
PAUSE
top page

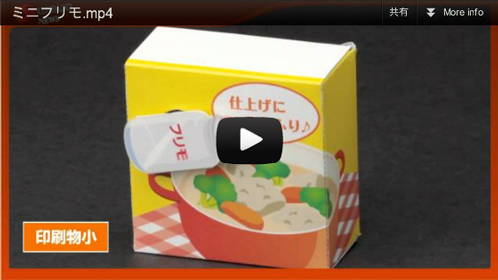

Mini-FURIMO

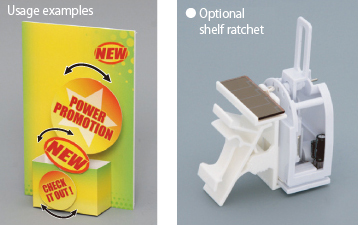

Pendulum movement is more attention-getting. Up to three POP items can be moved at the same time.
Mini-FURIMO
Mini-FURIMO
Dimensions: Main unit W35×D24×H49mm
With the arm:
Solar panel:
Cord length:		 H79mm
W35×D13×H1mm
180mm
Material: Heat resistant ABS
Heat resistance: 110ºC
Cold resistance: -10ºC
Mini-FURIMO
top page

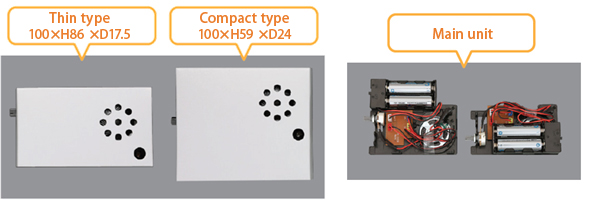

Messenger

A sensor-based audio POP that senses passers-by and delivers a message

Auxiliary functions
Human-detecting CDS sensor, volume
Power switch
Power supply
Built-in batteries (two AA batteries)
control screw, power switch
AC adapter
(1.5 V)
　　　AA battery x 2 3-V AC adapter with a DC cord
Battery life
Recording time
Battery life
10 seconds
Approx. 3 months
15 seconds
Approx. 75 days
20 seconds
Approx. 2 months
30 seconds
Approx. 39 days
40 seconds
Approx. 1 months
50 seconds
Approx. 24 days
60 seconds
Approx. 20 days
Maximum recording time
60 seconds
Audio data that has been recorded once cannot be modified or overwritten.
top
Aromachine

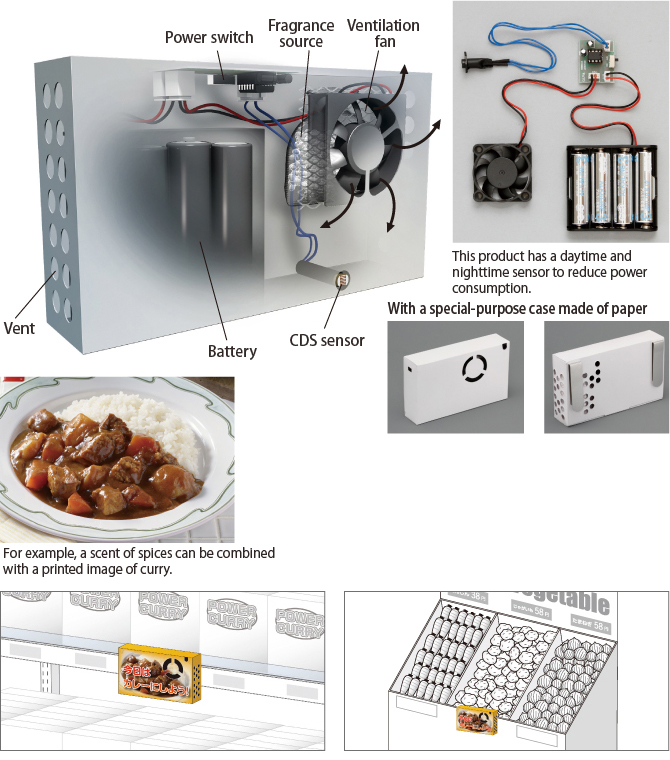

A sensor-based fragrance POP that clearly gives a good impression of goods through people’s sense of smell
かおるンダ
Specifications Size Material Extra information
Board Board　18mm×34mm
Thickness: 11 mm (including the connectors) 		Glass fiber
CDS sensor Length:250mm Sensor cover: ABS
Cord: PVC
fan 40mm×40mm Thickness: 12 mm (including the net)
Cord length:140mm		 Polyethylene terephthalate (PET)
Cord: PVC / Net: Aluminum 		5V 0.15A
Battery box 59mm×63mm Thickness: 16 mm
Cord length:150mm 		Battery box: Polypropylene.
Cord: PVC 		Four AA batteries (connected in a series)
AC adapter 42.5×67.5mm
Thickness: 27.5 mm		 Casing: Polycarbonate
Cord: PVC 		INPUT 100V-240V
DC Cord Length: 250 mm Cord: PVC
Battery life: Approx. 30 days (assuming that the fan operates 100 times a day)
